Detail produk:
|
| Jenis: | Dengan Spike atau Aluminium Anti-glare hood | Warna terang: | Satu warna |
|---|---|---|---|
| Kelenjar kabel: | IP68, tembaga berlapis nikel PG9 | Penggunaan: | Taman Lansekap Jalur Teras Luar Ruangan |
| Bahan: | Paduan aluminium yang diekstrusi #6063 | Kelas Ip: | IP65 |

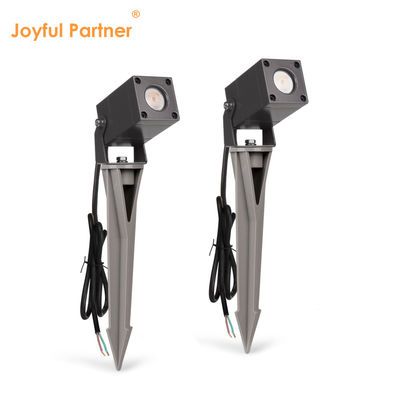

| Menyoroti: | IP65 LED Taman Spot Light,Lampu Tanah Led Taman Spot,Square LED Spike Spotlight |
||
|
Item No.
|
Sumber cahaya
|

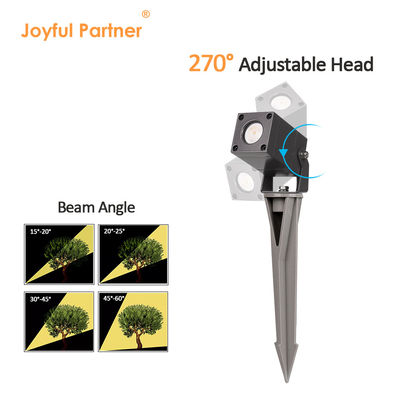

Sudut balok lensa ((°)
|
Konsumsi ((Watt)
|
Tegangan Masuk ((V)
|
Ik rate
|
|
S83311
|
1*1W
|
8°/15°/20°/30°/45°/60°
|
1
|
DC12V/DC24V
|
2
|
|
S83311H
|
1*1W
|
8°/15°/20°/30°/45°/60°
|
1.3
|
AC100-240V
|
2
|
|
S83312
|
1*3W
|
8°/15°/20°/30°/45°/60°
|
3
|
DC12V/DC24V
|
2
|
|
S83312H
|
1*3W
|
8°/15°/20°/30°/45°/60°
|
3.5
|
AC100-240V
|
2
|
|
S83316
|
1*3W RGB3in1
|
30°/45°/60°
|
3.2
|
DC12V/DC24V
|
2
|
|
S83305COB
|
1*5W
|
15°/30°/45°
|
5
|
DC24V/100-240V
|
2
|
|
Spesifikasi bahan
|
|
|
|
Rumah&Tutup depan
|
Aluminium paduan yang diekstrusi # 6063, oksidasi anodik atau pewarna bubuk luar ruangan
|
|
|
Kaca
|
Kaca tempered.T = 3mm
|
|
|
Lensa
|
Lensa optik,efisiensi ≥85%
|
|
|
Kelenjar kabel
|
IP68,PG9 tembaga berlapis nikel
|
|
|
Gasket
|
Segel berbentuk alat
|
|
|
LED
|
Epistar atau CREE,Ra>80
|
|
|
PCB
|
Aluminium konduktivitas panas yang sangat baik,
koefisien konduktivitas panas ≥2.0w/mk |
|
|
Pengemudi
|
Daya keluar arus konstan
output LED warna tunggal = 1-circuit RGB 3in1 LED = 3 sirkuit output |
|
|
Suhu operasi
|
(-20°C~40°C)
|
|
|
Kabel listrik
|
H05RN-F2*0.75mm2L=1m ((tekanan rendah)
H05RN-F3*0.75mm2L=1m ((tekanan tinggi) H05RN-F4*0.75mm2L=1m ((untuk RGB) |
|
|
Spike
|
PVC
|
|
|
Kap anti glare
|
Aluminium (Opssional)
|
|
|
Buah madu
|
Opsional
|
|
6Mudah dipasang dan dioperasikan.
![]()
