Detail produk:
|
Color temperature(cct): | Warm White,Pure White,Cool White,RGB,Multicolor | Application: | shopping mall,Swimming Pool,Fountain / Pond / Landscape/ Garden,outdoor,park fountain or hotel fountain |
---|---|---|---|
Base Type: | led underwater light | Beam Angle: | 45 Degrees |
Installation: | Bracket | Ip Rate: | IP68 |
Item Name: | IP68 LED Underwater Spotlight | Materials: | 316# stainless steel |
Mounting Type: | Mounting Base | Voltage: | 24VDC /12VDC |
Menyoroti: | IP68 LED di bawah lampu air,waterproof LED di bawah lampu air |

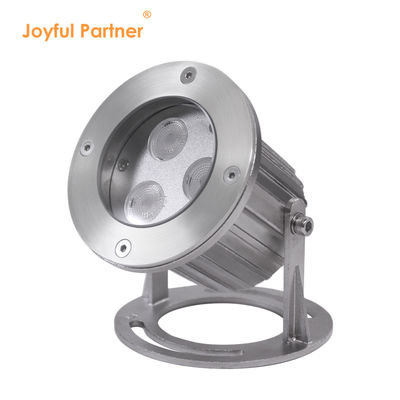

IP68 Waterproof Stainless Steel 316 3x2W LED Lampu Di Bawah Air Untuk Kolam Dengan Dasar Pemasangan
Item No. | Sumber Pencahayaan | Sudut balok lensa (°) | Konsumsi ((Watt) | Tegangan Masuk ((V) |
JP-90031 | 3X1W | 8°/15°/25°/30°/45°/60°/90° | 3 | DC12/24V |
JP-90032 | 3X2W | 8°/15°/25°/30°/45°/60°/90° | 6 | DC12/24V |
JP-90033 | 3x1W RGB LED | 8°/15°/25°/30°/45°/60°/90° | 3 | DC12/24V |
JP-90034 | 3x2W RGB LED | 8°/15°/25°/30°/45°/60°/90° | 6 | DC12/24V |
JP-90036 | 3x3W RGB3in1 | 25°/ 30°/45°/60°/90° | 9 | DC12/24V |
JP-90039 | 3x4W RGB3in1 | 25°/ 30°/45°/60°/90° | 12 | DC12/24V |

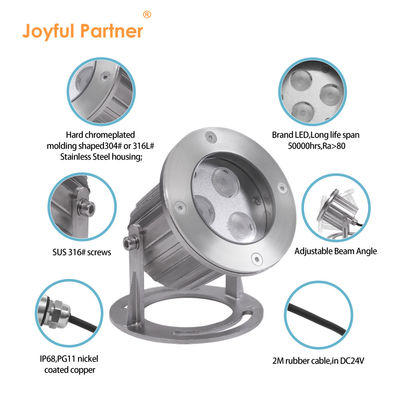

Bahan: stainless steel316#SS atau 304#SS
Lensa: Lensa optik, efisiensi ≥85%
Kaca: Kaca tempered T=8mm
Kelenjar kabel: IP-68 PG-11 tembaga dan nikel dilapisi
Warna terang: Warna tunggal/RGB/RGB3 dalam 1
Suhu kerja: -20°C sampai 40°C
PCB: Konduktivitas panas yang sangat baik Aluminium, koefisien konduktivitas panas ≥2.0w/mk
Gasket: Segel silikon berbentuk cetakan
Kabel listrik: H05RN-F 2x0.75mm2 L=2m (untuk warna tunggal)
H05RN-F 4x0.75mm2 L=2m (untuk RGB)
